25W N Connector 50 Ohm Termination DC 4GHz

Name: 25W N Connector 50 Ohm Termination DC 4GHz
Brand: Zysen
Price: 1 USD

Buy cheap 25W N Connector 50 Ohm Termination DC 4GHz product

Brand Name : Zysen

Model Number : ZCT-25RN-4T

Certification : ISO9001

Place of Origin : Chengdu,China

MOQ : 1pc

Delivery Time : 2-4 Weeks

Power handling : 25W

Frequency range : DC-4GHz

Connector : N-Male/Female

VSWR : 1.20Max

Price : Negotiable

Payment Terms : T/T, L/C,D/A

Contact Now

25W N Connector 50 Ohm Termination DC 4GHz

25W DC-6GHz N Type connector Coaxial Termination,

DC-4GHz, 8GHz,12GHz,18GHz are available with N connector, SMA are available up to 40GHz.

Zysen also offer a series Coaxial Termination frequency up to 67GHz , Power handling from 0.5 to 2000watts,connector SMA,N, 2.92mm or chip, flange are avaliable. Contact us with your requirement.

Electrical Specifications
Frequency Range	DC – 4GHz
Power	25W CW (when temp. Up to 125ºC, the power reduced to 2W linearly)
VSWR	1.20 max
Impedance	50ohm
Connector	N-Male
Temperature Range	-55ºC ~ +125ºC

Mechanical Specification
Connector Material	Cu
Housing	Aluminum, Black Anodize

Our advantages:

1. With more than 10 years experience on waveguide R&D of products.
2. The quality of products has won the praise of domestic and foreign customers.

3. Fast deilvery time, all attenuators and termiantions can be delivered within 1 to 2weeks.

Product Tags:

N Connector 50 Ohm Termination

25W 50 Ohm Termination

DC 4GHz RF Load Termination

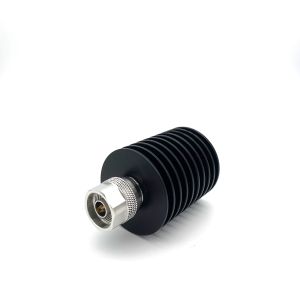

25W N Connector 50 Ohm Termination DC 4GHz Images
